baroCAN - Ambient, Intake and Cabin Conditions

The performance of all air-breathing engines is highly dependant on intake air conditions.

Engine testing and calibration that ignores intake air conditions will be biased by the ambient conditions of that particular day of testing. This is most evident with on-the-road testing where ambient conditions cannot be controlled and are most extreme. As a result, the test results or calibration will have a random effect due to weather, and suboptimal emissions and fuel economy may result.

As emissions and fuel economy regulations get more severe, this randomness in test and calibration quality cannot be tolerated.

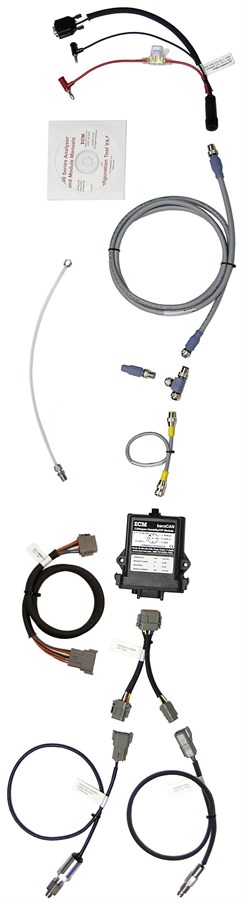

ECM's baroCAN module is a compact and rugged measurement system that provides all the important air conditions:

  • Humidity
  • %O2
  • Dew point
  • Temperature
  • Absolute Pressure

These parameters are available in all known units via CAN communication.

By including these parameters in the test data set, correction of the test data and modification of the calibration can be performed resulting in better optimised engine operation.

baroCAN's sensors can be easily mounted in a variety of locations and contain calibration memory chips.

PC software to set-up CAN communication, view and log data and calibrate the sensors is included.

Range: RH 0 to 100%
Temperature -40 to 125°C
Pressure 0 to 500 kPa Absolute
Dew Point 0 to 125°C
%O2 0 to 20.946%
Accuracies: RH ±2%
Temperature ±0.3°C
Pressure ± 0.7 kPa (± 0.10 psia)
Dew Point ±0.88°C
%O2 ±0.02%
Response Time: 1 sec (RH, Temperature, Dew Point, %O )
25 msec (Pressure)
CAN: High Speed according to ISO 11898
Sensors: 1 RH & Temperature Sensor
1 Pressure Sensor
Sensor Mounting:
1/4" NPT/ISO (RH & Temperature)
1/4" NPT/ISO (Pressure)
0.6m (sensors)
1m (standard extension)
2m (optional extension)
Power: 6 to 32 VDC, (optional AC/DC supply available)
Size & Weight: 145mm x 120mm x 40mm (4.75" x 1.5" x 5.75"), 234 gm (8.25 oz)
Environmental: IP67, -55 to +125°C, 100% humidity, environmentally sealed
